Mount All the Things! – Mounting APFS and 4k Disk Images on macOS 10.13

Recently there has been some questions on the forums and Twitter as to how to mount forensic disk images that were captured from Mac system that implemented 4k block sizes. A few years ago, Mac systems started to use 4k blocks instead of 512 byte block sizes. This has caused some issues where you need to mount the image to do analysis without a major forensic suite. BlackBag wrote a good blog article on this last month however I hope to expand on it just a bit to include E01 files and FileVault encryption scenarios.

I will also detail how to mount the forensic disk images using newer APFS file system so analysts can start to do their thing while all the forensic tools catch up! APFS disk images already appear to use 4k block sizes as the default, at least on all my test systems. If you see otherwise, please let me know!

This article will try to provide some options to mount these images, however it cannot solve all the issues or combinations of disks/block sizes/host operating systems – it seems that you will have to upgrade to 10.13 at some point to solve many of these problems.

HFS+ 4k and FileVault Images

The following steps will bring you from a full HFS+ FileVault 4k disk image in EWF format to a mounted image using macOS 10.13. (If you have a raw (non-EWF) image, you can bypass steps 1 and 3.)

  1. $ sudo mkdir /Volumes/4k_image/

  2. $ sudo mkdir /Volumes/4k_mounted/

  3. $ sudo xmount --in ewf --out dmg 4k.E01 /Volumes/4k_image/

  4. $ hdiutil attach –nomount –blocksize 4096 /Volumes/4k_image/4k.dmg

  5. [Input Password in Prompt Window]

  6. $ diskutil cs list

  7. $ sudo mount_hfs –o rdonly,noexec,noowners /dev/disk# /Volumes/4k_mounted/

1. Create a mount point to put the xmount converted DMG image (converted from EWF format). [sudo is required when dealing with /Volumes/ since 10.12]

2. Create another mount point to put the mounted image on. This will act as the root volume for the mounted image.

3. Using xmount (sudo required) to convert from EWF (--in) to DMG (--out) format. DMG is selected here since it is very Mac friendly. Provide the E01 image (use E?? if using segments) and the converted image mount point created in Step 1. This could take a few seconds if the disk image is large. Theoretically you can use another mounting utility, I've tried ewfmount on 10.13 and ran into errors that I'm still investigating. Having trouble installing Xmount? Does it say OS X Fuse is not installed? Look in the comments section for a fix.

4. Using hdiutil, attach (but don’t yet mount) the DMG file created in Step 3. Using the hidden argument –blocksize we can specify 4096 (‘4k’ can also be used here). It is worth noting here that while hidden in 10.13 this option does not appear to exist in 10.12 versions of this utility. It is also is not detailed in the hdiutil man page. Gotta love hidden functionality! This will output a bunch of /dev/disk* options, however none of these are the ones you need thanks to CoreStorage.

5. If the image is FileVault encrypted a password window will appear, please put the password for the disk in here so it can be unlocked.

  • If you want to do this all via the command line (you rock!) you can pass –stdinpass to the hdiutil command in Step 4 where it will prompt you for the password.
  • You will then need to use ‘diskutil cs unlockVolume <LogicalVolumeGUID> ‘ after determining the Logical Volume GUID to use by using ‘diskutil cs list’. (Similar to Step 6) Note the Lock Status highlighted in the screenshots below.

6. Next use ‘diskutil cs list’ to determine which disk to using in Step 7. Determine which volume you will be performing analysis on, in the screenshot above it is /dev/disk6.

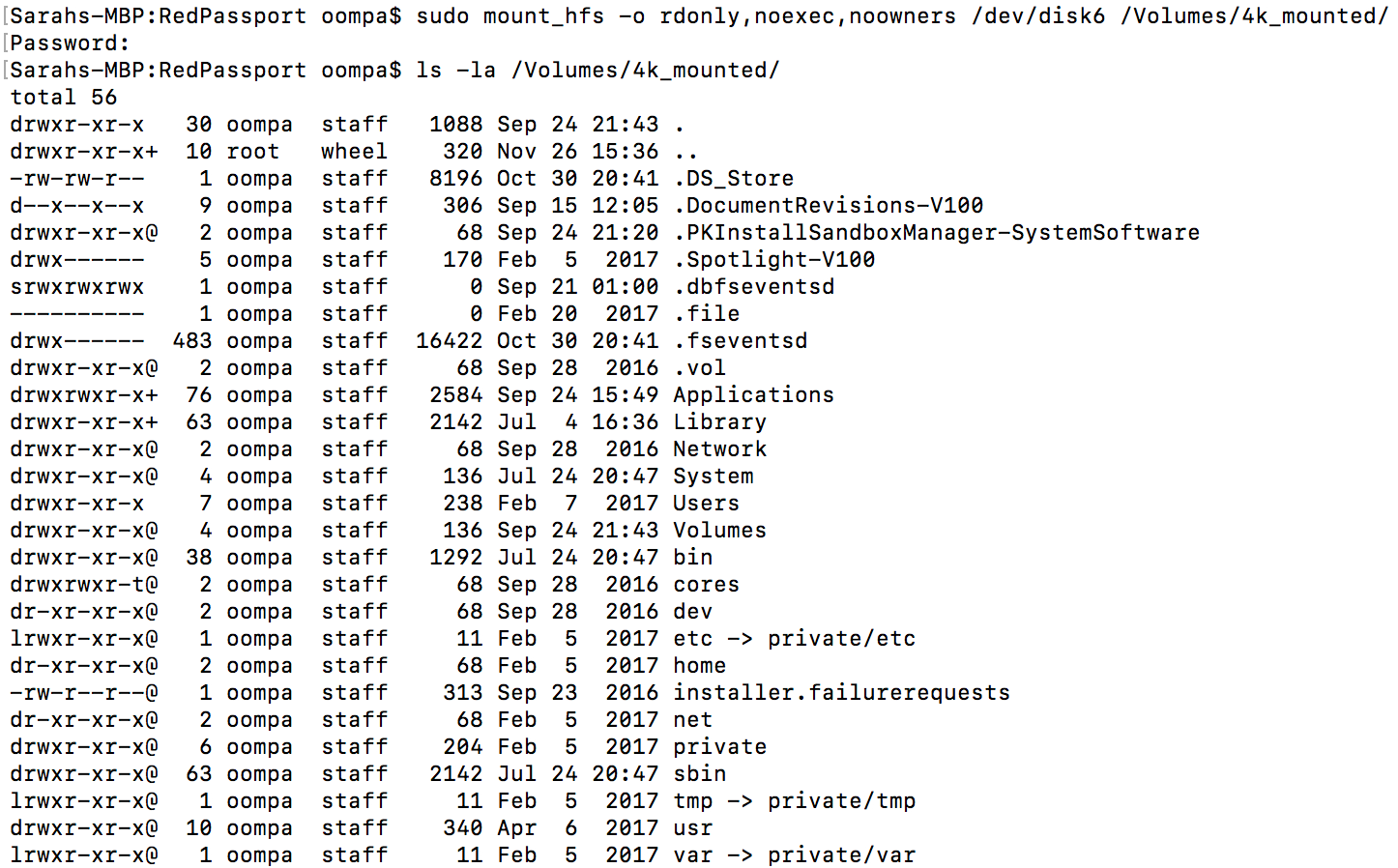

7. Using mount_hfs (with sudo again) we can mount /dev/disk6 (the ‘#’ is just a variable used above, yours may be a different number) using a variety of options (you can choose your own, however I normally use read only, ignore ownership, and limit binary execution options. Also provide it the second mount point you created in Step 2.

If it all works out, congrats you now have a mounted image!

APFS Images

A similar approach can be used for new APFS disk images. Anyone who has tried to capture their disk images in 10.13 might have had a problem doing so due to System Integrity Protection (SIP). SIP is now protecting /dev and will likely make forensic acquisition and analysis more difficult if you happen to interact with /dev often. Easy fix – disable SIP. While not technically good for security purposes, it can be a general pain in the posterior to have on. To disable it, reboot into Recovery mode, open the Terminal and type ‘csrutil disable’ and restart the system. Yes, you can re-enable it later with ‘csrutil enable’.

  1. $ sudo mkdir /Volumes/apfs_image/
  2. $ sudo mkdir /Volumes/apfs_mounted/
  3. $ sudo xmount --in ewf --out dmg apfs.E01 /Volumes/apfs_image/
  4. $ hdiutil attach –nomount /Volumes/apfs_image/apfs.dmg
  5. $ diskutil ap list
  6. $ diskutil ap unlockVolume <Disk GUID> –nomount
  7. $ sudo mount_apfs –o rdonly,noexec,noowners /dev/disk# /Volumes/apfs_mounted/

Because it is so similar to the process above, my description of each step here will be limited. In Step 4 we do not need to use –blocksize as it just happens to work without it. In Step 5, instead of ‘diskutil cs list’ we use ‘diskutil ap list’ – APFS does not use CoreStorage (cs) and instead uses APFS containerization (ap). The ‘ap’ will also be used in Step 6. Step 7 uses mount_apfs instead of mount_hfs for obvious reasons and would be used on /dev/disk6s1 as shown in the example screenshot below.

References and Thank You’s

https://www.blackbagtech.com/blog/2017/10/05/apple-file-system-apfs-mac-forensic-imaging-analysis/

A big thanks to Ed and a “little birdy” for sanity checks and help!
